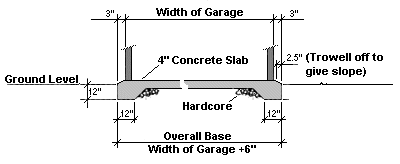

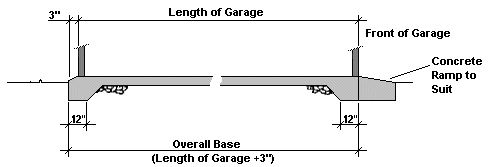

Concrete Building Base Plan Drawings (Imperial)

> Go to Base Plan Drawings (Metric)

The length and width dimensions are as specified in our brochure, or on the web page describing the garage (or other building). We may be able to recommend a local contractor who can carry out the work for you. For sheds and workshops, please adapt these plans appropriately.

Please Note: Drawings are for Leofric garages ONLY. For Mayfair base details, please contact us.

Important: Our buildings have been designed for erection on a base that is level and flat. On garages, to ensure that the main door will fit correctly, there must not be a slope between points A-A.
